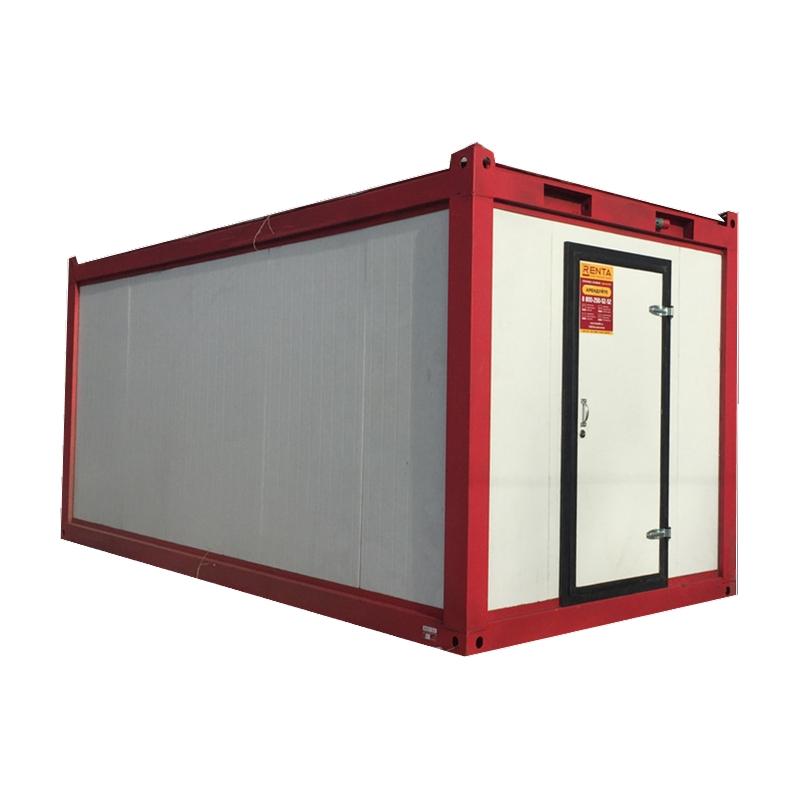

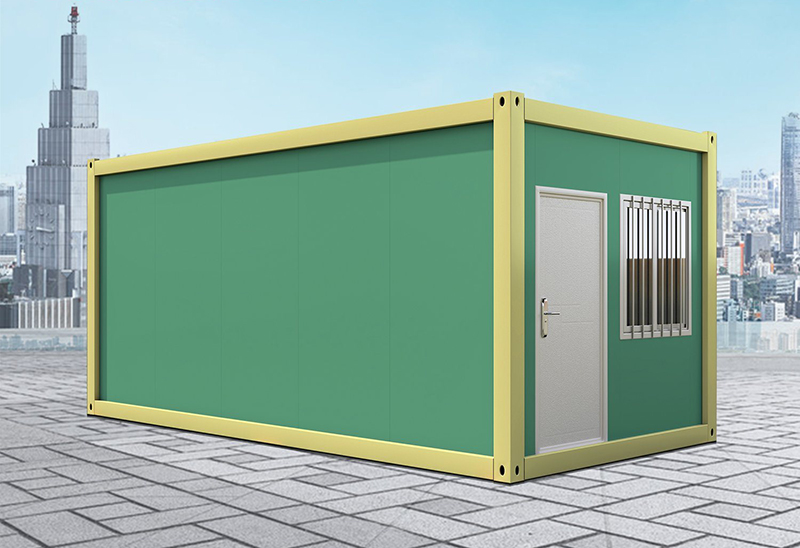

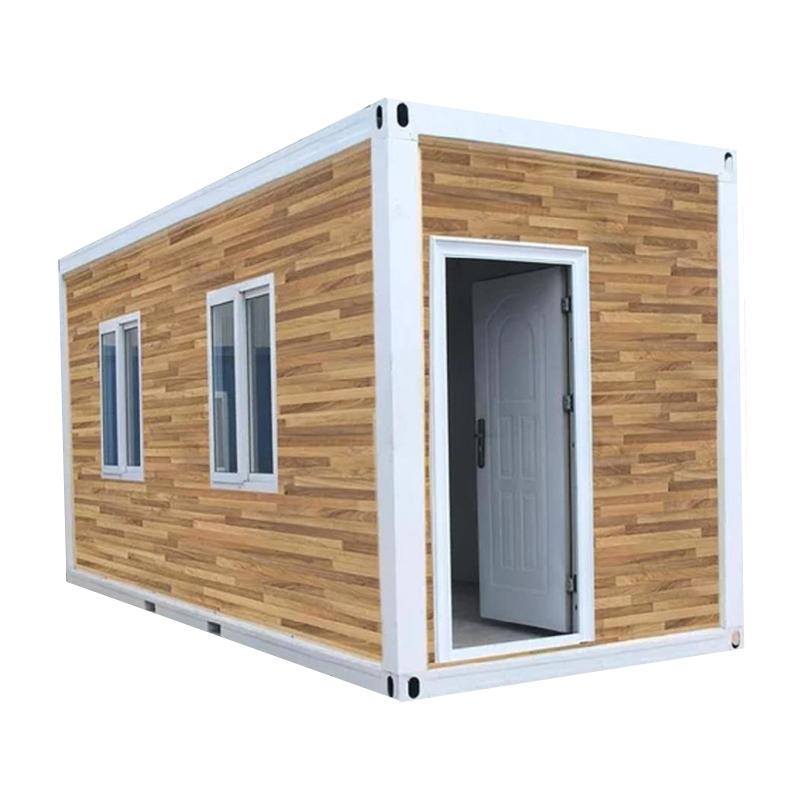

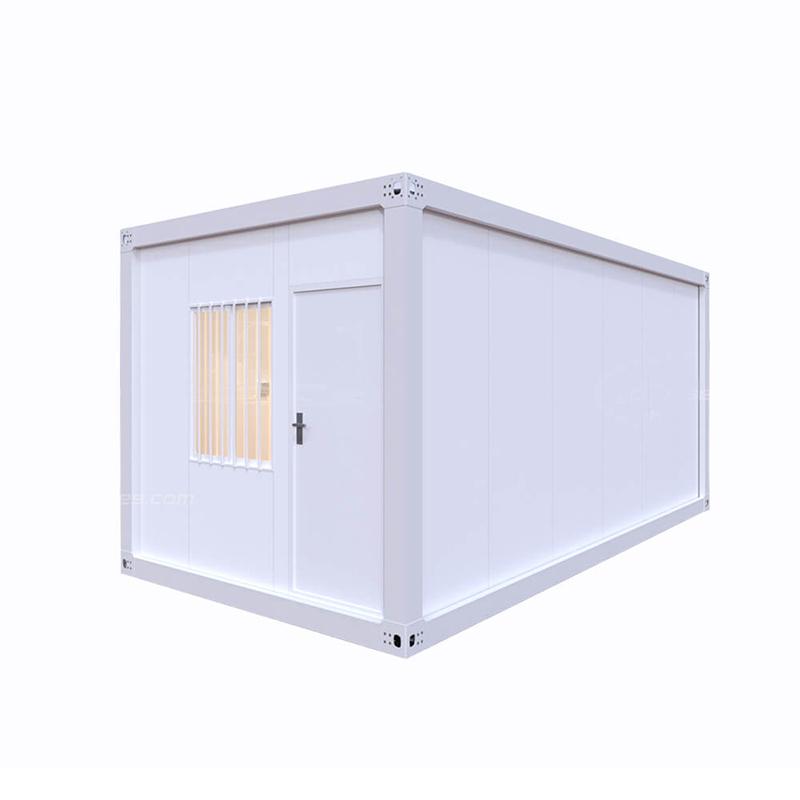

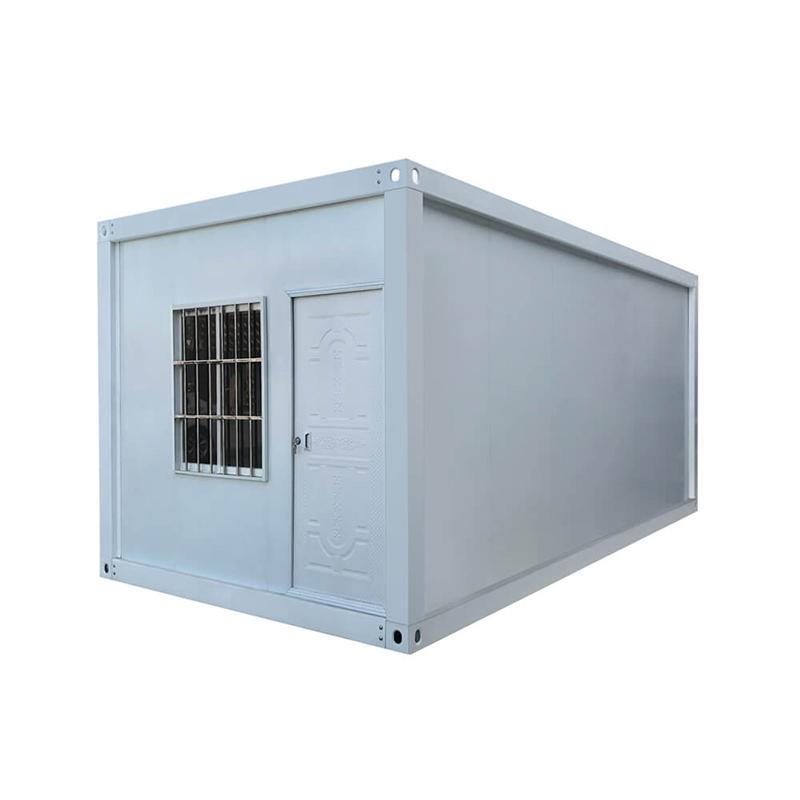

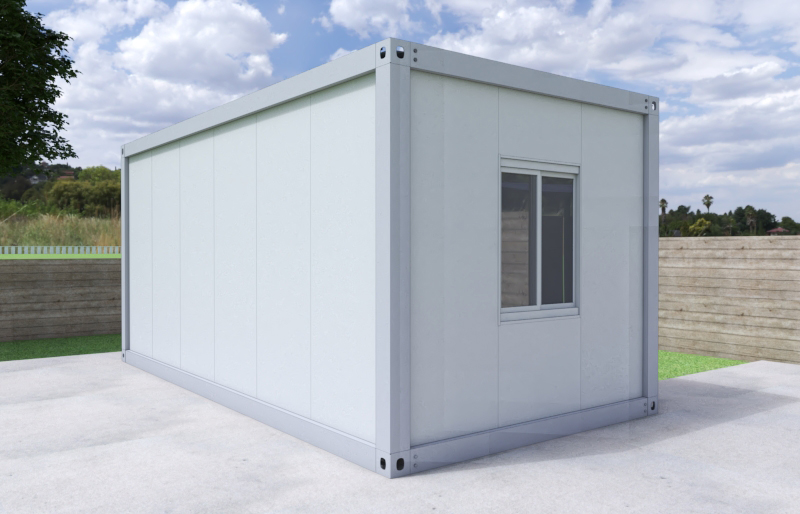

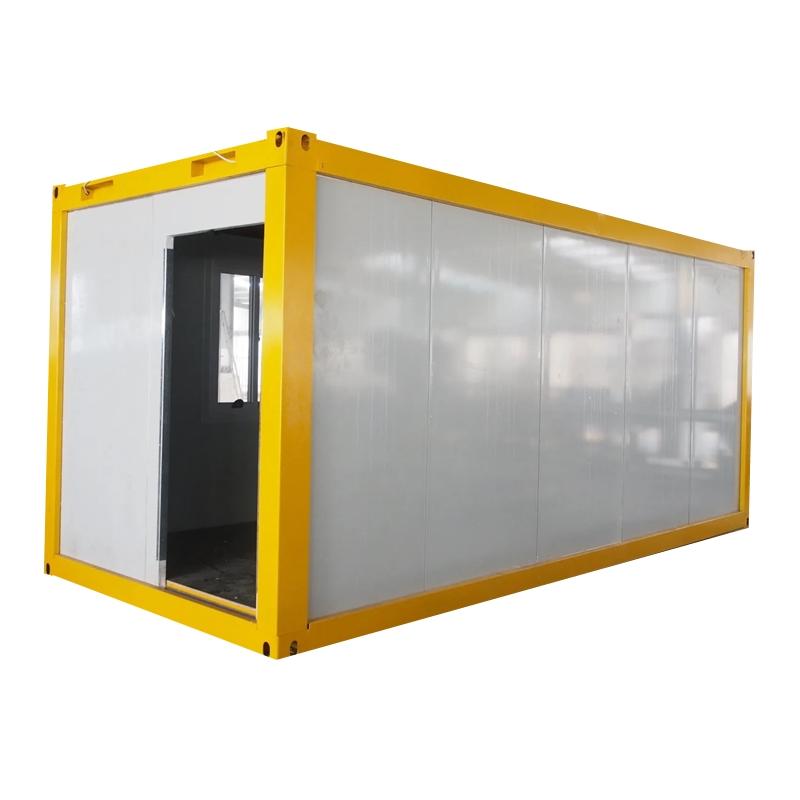

20FT 40FT Low Cost Detachable Prefabricated Flat Packed Container House

At the same time, one of the areas where flat pack container house is used is public housing projects. Refugee camps, mass housing projects planned after a natural disaster are other areas where these structures are mostly used. We produced flat pack containers for the projects of many different institutions, from aid activities to leading construction companies.

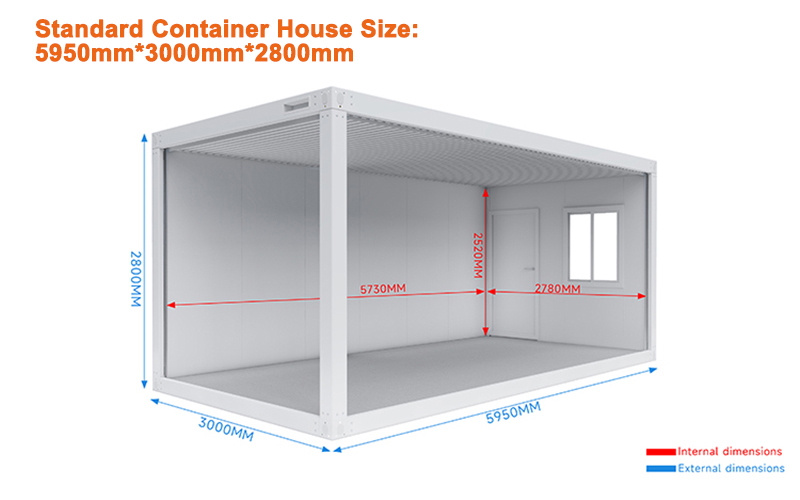

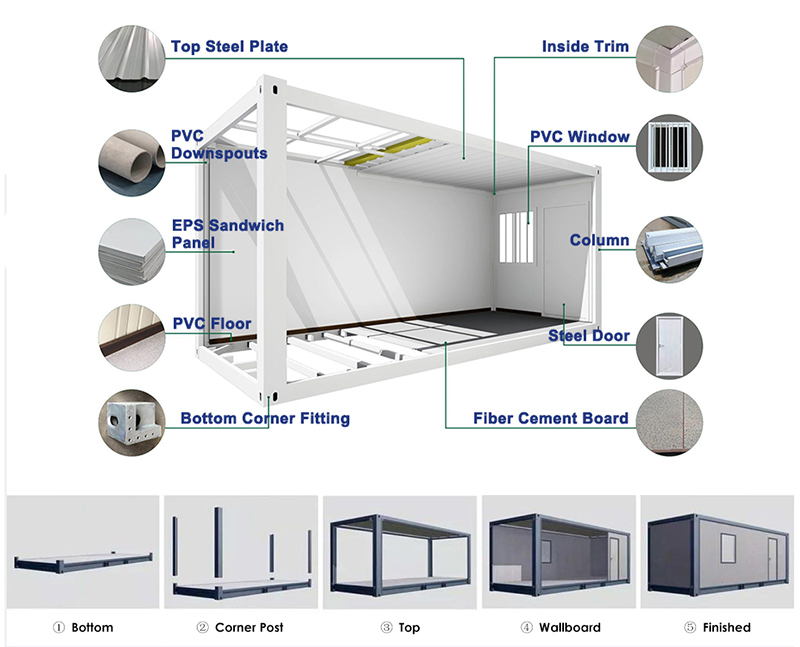

5950*3000*2800mm Standard Assemble Flat Packed Container House Material List
No.	Item	Part Name	Unit	QTY	Length(M)	Remark
1	Wall panel	50mm Rock composite panel	piece	15	2.53	Galvanized color sheet 0.35mm
2			piece	2	1.44	Galvanized color sheet 0.35mm
3			piece	1	0.46	Galvanized color sheet 0.35mm
4	Frame	Bottom frame	piece	2	5.63	Galvanized frame 2.3/3.0mm
5			piece	2	2.68
6		Top frame	piece	2	5.63	Galvanized frame 2.3/3.0mm
7			piece	2	2.68
8		Upright frame	piece	4	2.48	Galvanized frame 2.3/3.0mm
9		Clamp slot	piece	2	2.66	90*60mm
10			piece	2	2.71	90*60mm
11		Corner	piece	8		170*170mm,160*160mm
12	Galvanized square tube	Bottom tube	piece	4	2.96	80*80mm,1.2mm
13			piece	5	2.96	40*80mm,1.2mm
14		Top tube	piece	4	2.96	40*80mm,1.2mm
15			piece	1	5.63	40*80mm,1.2mm
16			piece	2	5.63	40*60mm,1.2mm
17			piece	3	5.74	20*40mm,1.2mm
18	Door	Steel	piece	1		W*H=925*2090mm
19	Window	PVC single glass	piece	2		W*H=930*1100mm
20	Top sheet	Galvanized sheet	piece	6	2.85	Thickness 0.45mm
21	Ceiling sheet	Galvanized sheet	piece	7	2.78	Thickness 0.23mm
22	Rockwool		bag	1
23	Floor	Fiber cement board	piece	5	2.78	2780*1146*18mm
24	Accessaries	PVC downpipe	piece	4
25		Column&Ceiling  aluminum decoration	set	1	2.52	4 pcs
26					5.7	3 pcs
27		Self tapping,rivets,hexagon socket bolts,glues,etc.
28	Electric accessaries	Distrubute box	piece	1
29		Switch	piece	1
30		3-hole socket	piece	1
31		5-hole socket	piece	4
32		32A Leakage protector	piece	1
33		Industrial socket	piece	1
34		32A Circuit breaker	piece	1
35		LED ceiling light	piece	2
36		Wires(According to local voltage)		1

Q1. What is the leading time?
Normally about 7-15 days,  it is negotiable for large project.
Q2. What is the minimum order quantity for the container house?
The MOQ is 1 set.
Q3. Does it can install solar system on the roof?
Yeah, of course.

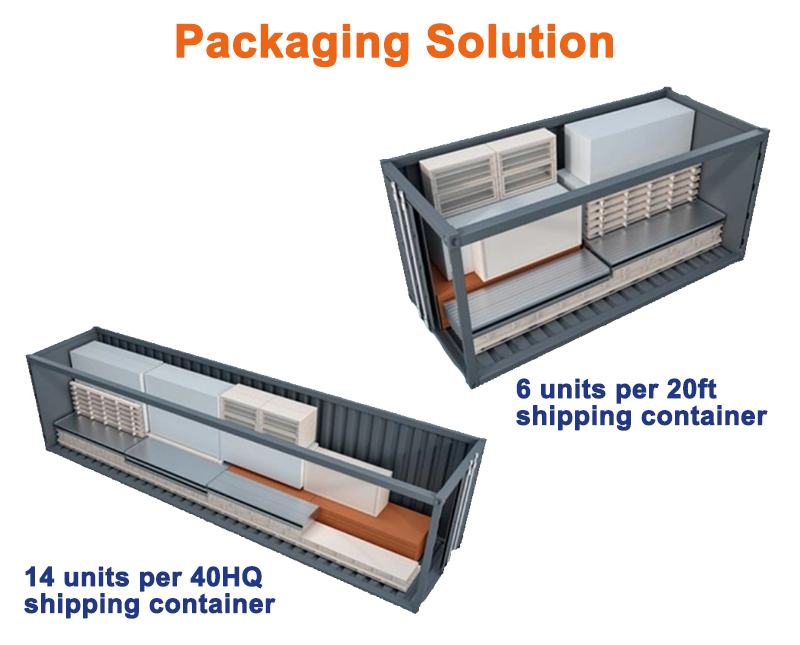

Q4. How many sets standard container house can be loaded in 20FT / 40HQ shipping container?
Different types container house with different loading type.
For assembly container house:
20FT load 6~7 sets, 40HQ load 16~17 sets.

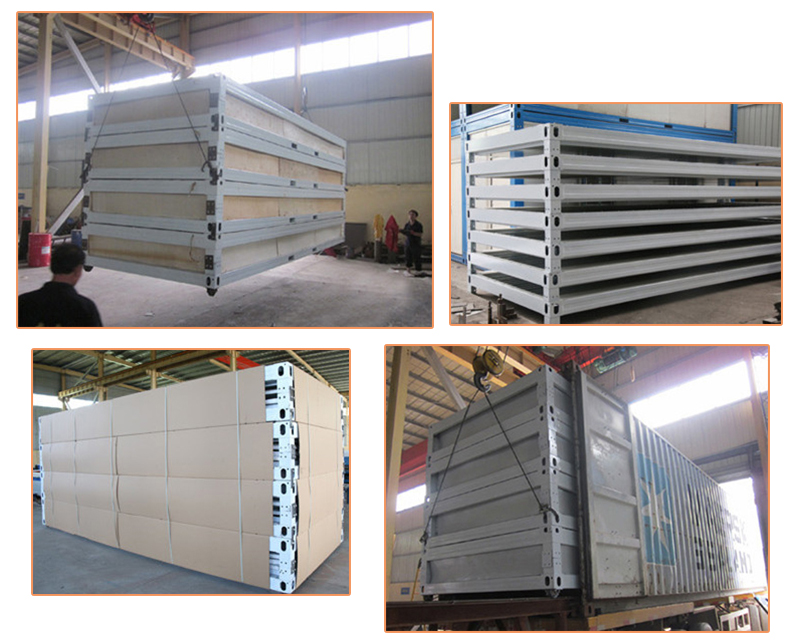

For flat packed container house:
20FT load 3 sets, 40HQ load 6 sets.

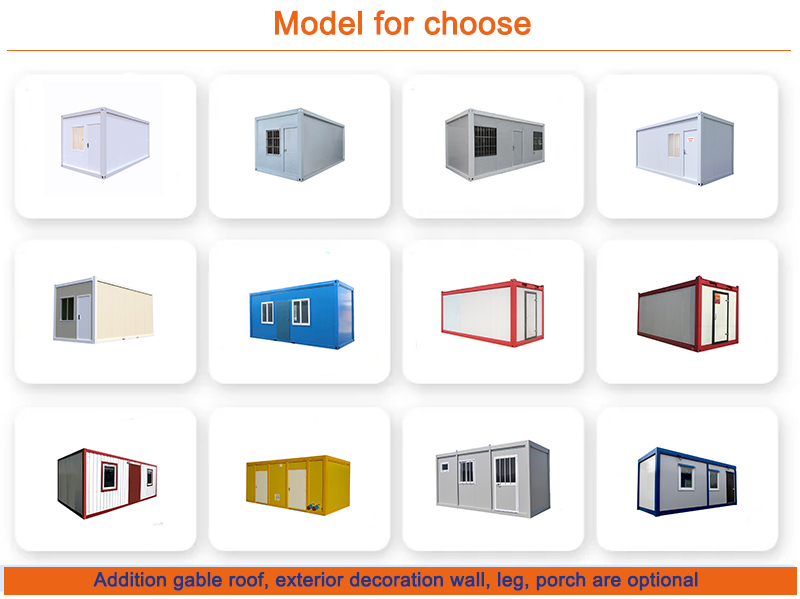

Q5. Does the house can be customized the room layout? Can you provide the layout drawing?
Yes, the container house can be customized, and we can according to your design ideas to offer drawing to you for reference.
