The aluminum extrusions are among the most useful components for making jigs and fixtures.
Item NO.:
THA02Order(MOQ):
1 tonPayment:
T/T; LC 100% at sightProduct Origin:
ChinaColor:
CustomizedShipping Port:
XiamenLead Time:
15-30 days
COMPANY PROFILE
Xiamen Taohong Tech. Co.,Ltd operates a quality management system approved to ISO 9001:2008 and dimensional tolerances to EN 755. This system allows quality management from an initial contract review through to product shipment. Laboratory facilities are also available to assist with quality assurance and any necessary metallurgical testing.

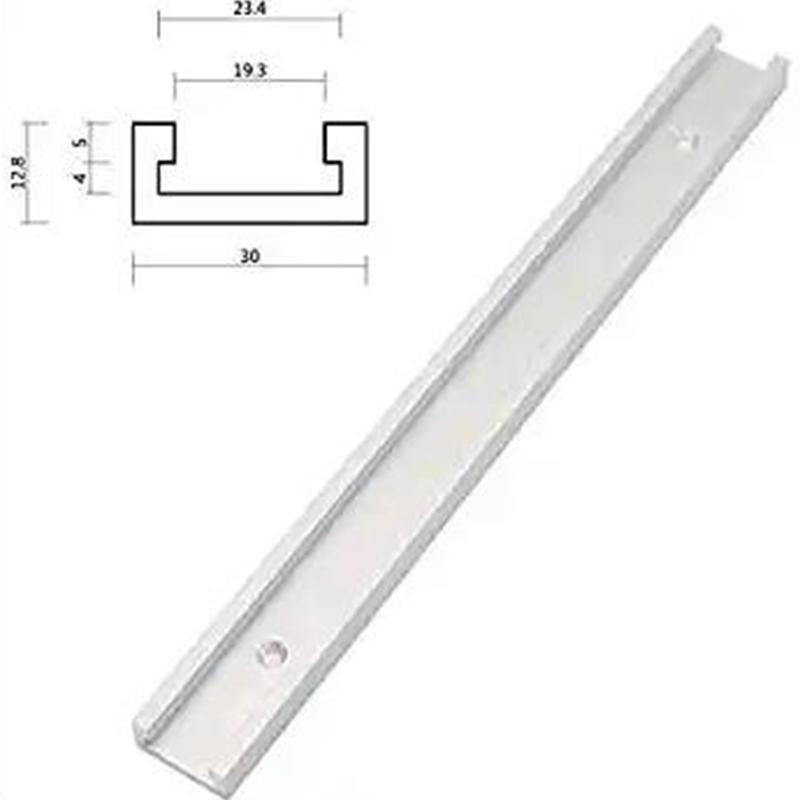

DESCRIPTION FOR ALUMINUM T TRACK PROFILE

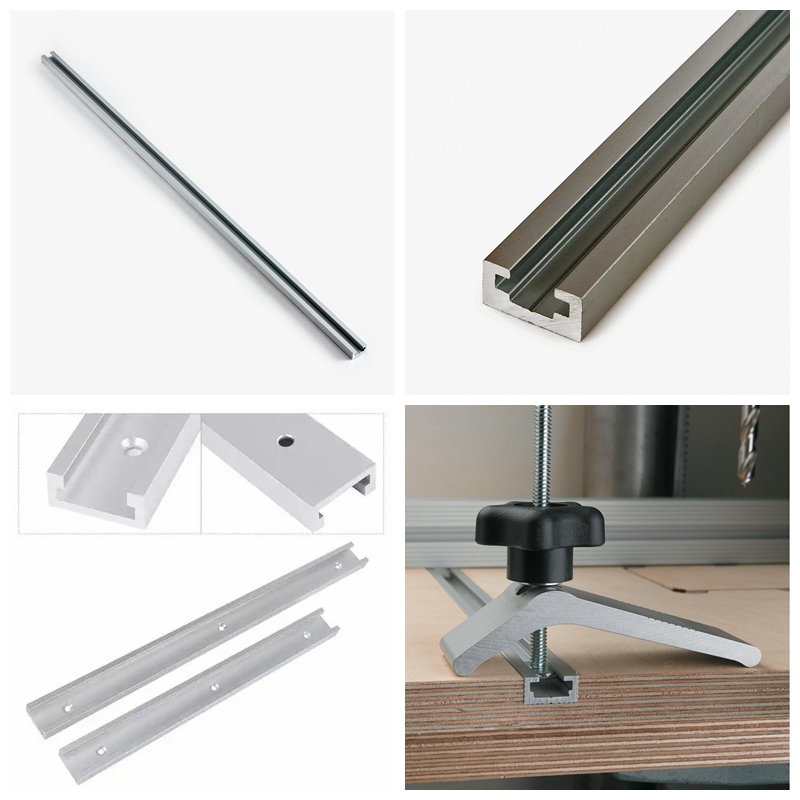

ALUMINUM PROFILE USAGE

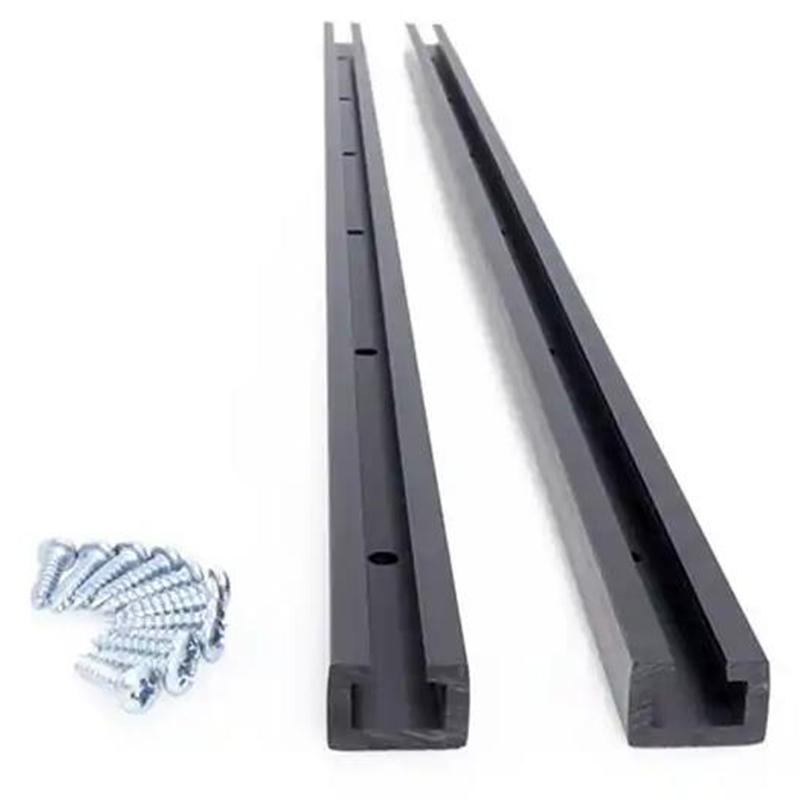

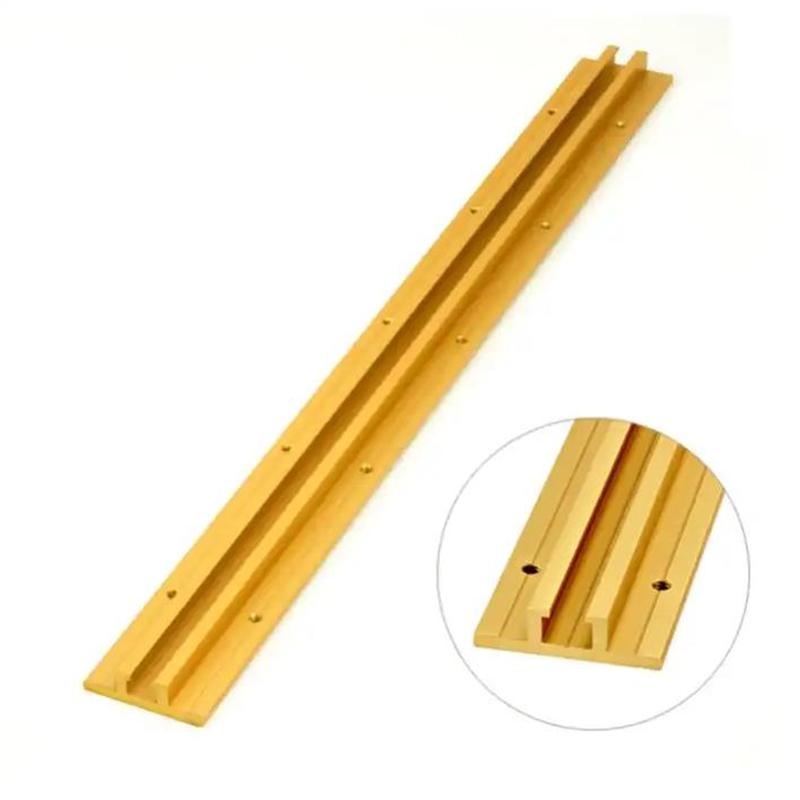

These aluminum extrusions are among the most useful for making jigs and fixtures. The 1/4" extrusion will fit into a standard 3/4" miter slot, the miter slot track, or a 3/8" × 3/4" dado. The 5/16" extrusion fits into a 7/16" × 7/8" dado. The outside surfaces are fluted to provide additional gluing area. The 3/4" miter slot extrusion is used primarily as a miter fence slot; it can be built into any surface by dadoing a 1/2" deep by 1" wide groove to accept it. It can be placed anywhere, but it should run all the way from one side of the workpiece, jig or table top to the other. All extrusions include a central V-groove for ease of drilling.
ALUMINUM EXTRUSION INSTALLATION

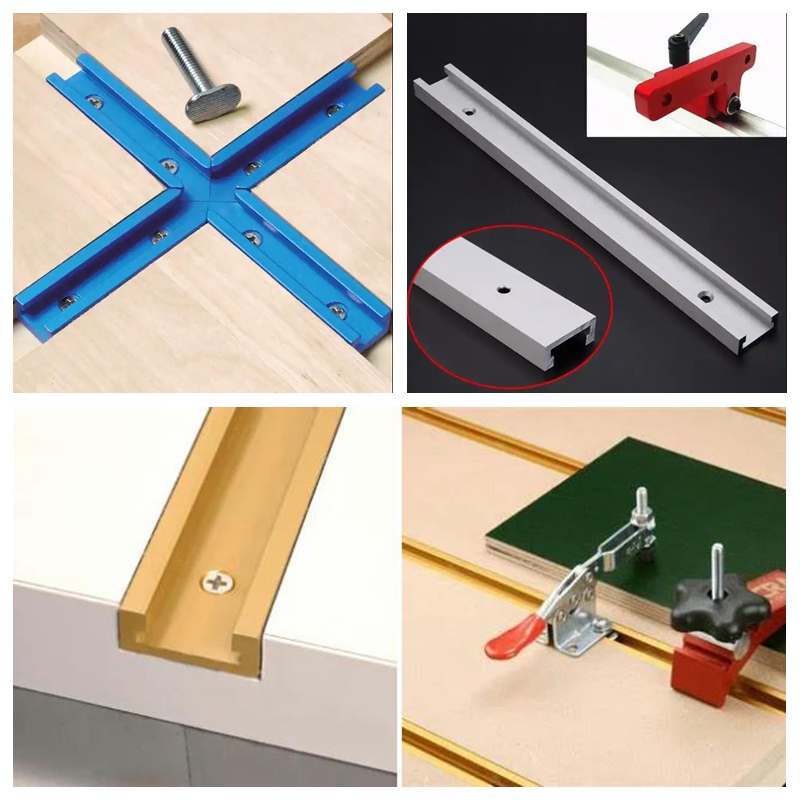

To install a track, you need only cut a dado of the appropriate width and depth. For small applications, the dado can be cut on a router table; for large applications, it can be cut on a table saw equipped with a dado stack or with a guided router. For most applications, the top surface of the track should be flush with or slightly below the table or jig surface. This will prevent interference with mating jig features or workpieces. To achieve this, the dado should be ever so slightly deeper than the track thickness. Paper, plastic or brass shims can then be used to precisely adjust the height as required.

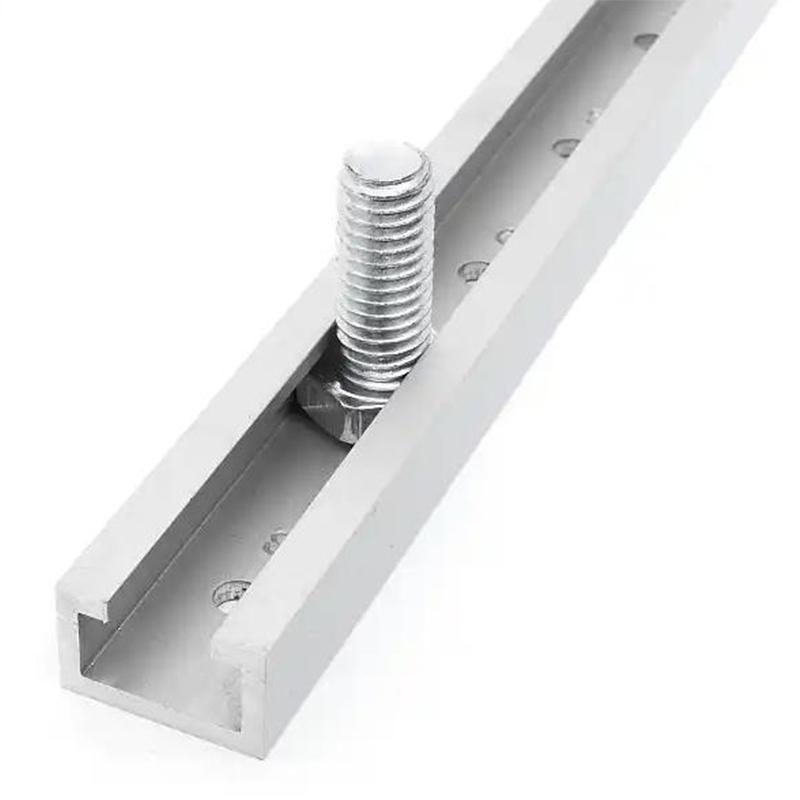

Sized to fit 1/4-20 hardware, they can be used with T-slot nuts or T-bolts. Optional hex bolt shoulder washers allow them to be used with commonly available hex bolts. (Nuts, bolts and washers are available separately.)

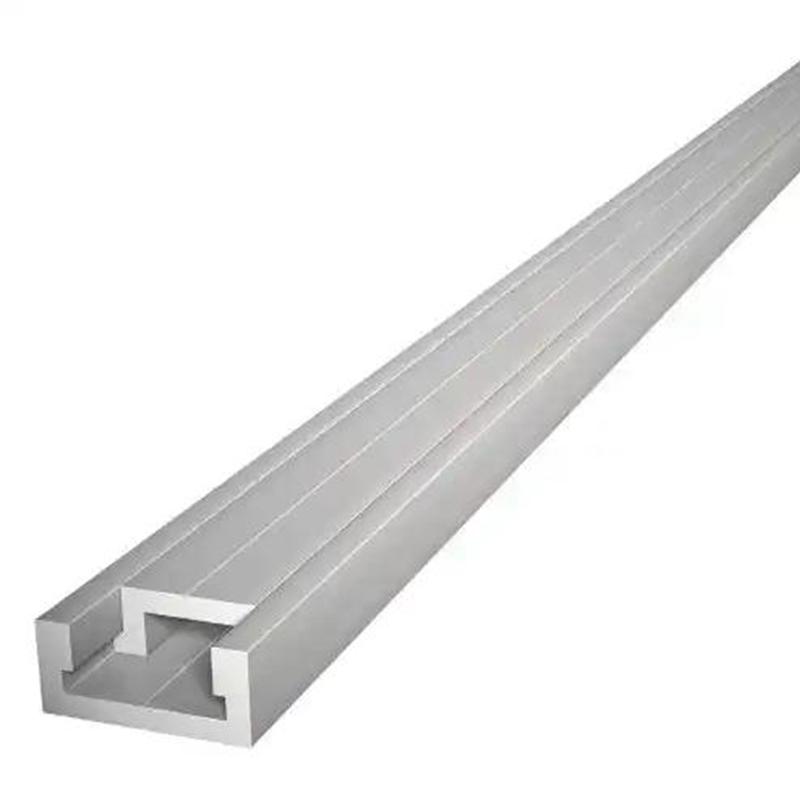

Aluminum Extruded T Track rails assembly
ALUMINUM ALLOY SURFACE TREATMENT
