Fast Build Prefab House Modular Folding container house

Use strong building materials to build a house Strong and beautiful !
  • Item NO.:

    container house
  • Order(MOQ):

    6sets
  • Payment:

    FOB
  • Product Origin:

    China
  • Color:

    customied
  • Shipping Port:

    Shanghai,China
  • Lead Time:

    10-15day
Available Colours
  • Product Detail


COMPANY PROFILE:


Xiamen taohong tech. Co.,ltd operates a quality management system approved to ISO 9001:2008 and dimensional tolerances to EN 755. This system allows quality management from an initial contract review through to product shipment. Laboratory facilities are also available to assist with quality assurance and any necessary metallurgical testing.


Products Description


What is a folding container house?

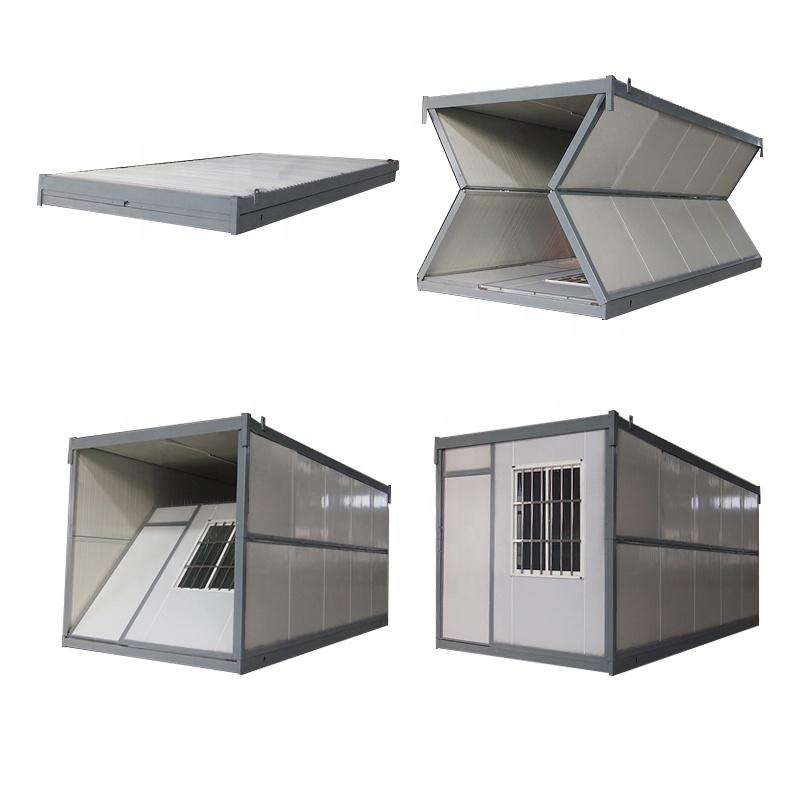

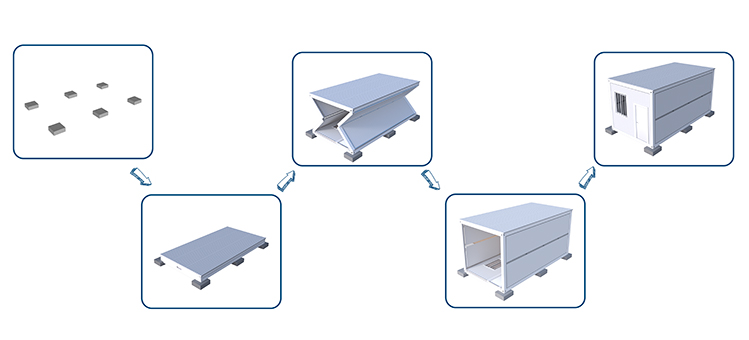

Folding container house is a modified container that can easily fold or disassemble all the components, which refer to the main components of the container (side walls, end walls, top of the container, etc.), and can be easily reassembled when used again. Specifically, the foldable container house is composed of a base, a left side wall, a right side wall, a front door wall, a rear wall, and a roof. The base and the lower ends of the walls are connected by hinges. Both the upper end and the roof are connected by hinges with movable pins. When the container is used without loading, the walls and roof are folded on the base for storage. When the customer uses it, he can open it, lift the roof, erect the walls, and connect the walls with hinges with movable pins.


modular container house


Bottorn

Frame structure

2.5mm thick profiled steel



Floor

MGO board,waterproof, fireproof(Option Fiber cement)



Floor finshes

1.8mm PVC flooring (extra cost)

Roof

Frarme structure

2.5mm thick profiled steel



Outside cover

0.426mm steel shcet



Insulation

glass wool



Ceiling

0.25mm steel sheet bottom tile

Color

Customizable

Use

Carport, Hotel,House, Kiosk Booth Office, Sentry Box,GuardHouse,Shop.Toilet, Villa Warehouse,IWorkshop,Plant

Coener post

4.5 cold rolled steel profile, galvanization, welded(210mm ×150mm)

Wall panel

Sandwich panel with 50mm/75mm rock wool

Wndow

Aluminum alloy windows with dimensionbars(925mmx1200mm)

Door

Steel door with dimension(790mmx1970mm)

Electricity

Light, Switch, Socket, distribution box, breaker and wire

Painting

Automatic galvanizing and baking paint spray molding

Exterior size

5800(L)*2450(W)*2500(H)


Advantages of folding containers


The volume of the folding container after being folded is only one-fifth of the general fixed container, which can greatly reduce the transportation cost and reduce the storage area and space. It is easy to fold and install, save labor and time, can obtain more economic benefits, and greatly improve the market competitiveness of the product.




When the folding container house is transferred to the next project, it is necessary to organize the luggage in advance, do a good job of sanitation, and then fold it and transfer it. Ordinary container houses can be transported in a short distance, without having to clean up the luggage, and can be moved with the box.


tiny container house

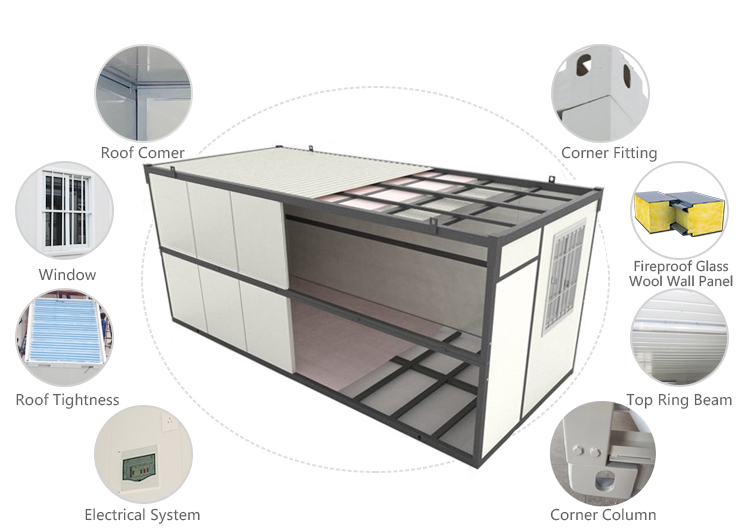

Product details

folding container house



Product show



Scope of application: suitable for offices, conference rooms, headquarters, dormitories, warehouses, shops, additional floors and various temporary houses in the fields of construction, railways, highways, water conservancy, petroleum, commerce, tourism and military. It can also be used as Fixed building use, such as: integrated coffee shop, integrated apartment, integrated villa, integrated hotel, etc., does it sound cool?


Prefab container house












Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
